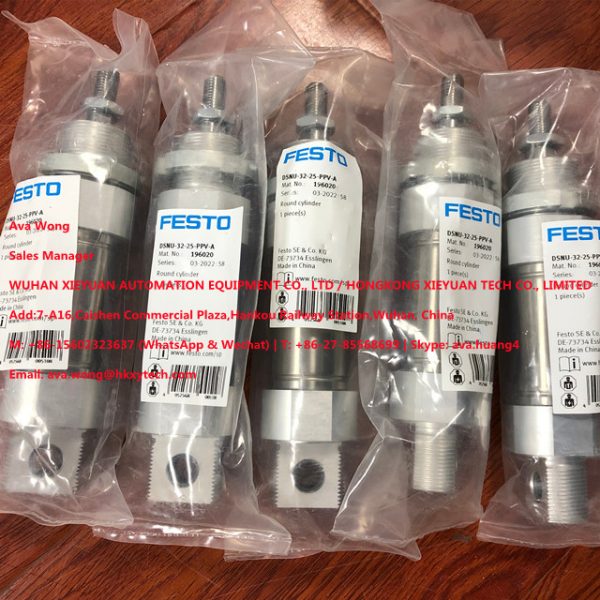

Festo Round cylinder DSNU-32-25-PPV-A 196020

Stroke
25 mm
Piston diameter
32 mm
Piston rod thread
M10x1.25
Cushioning
Pneumatic cushioning, adjustable at both ends
Mounting position
optional
Design
Piston
Piston rod
Cylinder barrel
Position detection
Via proximity switch
Symbol
00991235
Operating pressure
0.1 MPa … 1 MPa
Operating pressure
1 bar … 10 bar
Mode of operation
Double-acting
Operating medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium
Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC
2 – Moderate corrosion stress
LABS (PWIS) conformity
VDMA24364-B1/B2-L
Ambient temperature
-20 °C … 80 °C
Cushioning length
14 mm
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
482.5 N
Moving mass
144 g
Product weight
410 g
Type of mounting
With accessories
Pneumatic connection
G1/8
Note on materials
RoHS-compliant
Material cover
Wrought aluminium alloy
Material seals
NBR
TPE-U(PU)
Material piston rod
High-alloy steel
Material cylinder barrel
High-alloy stainless steel
