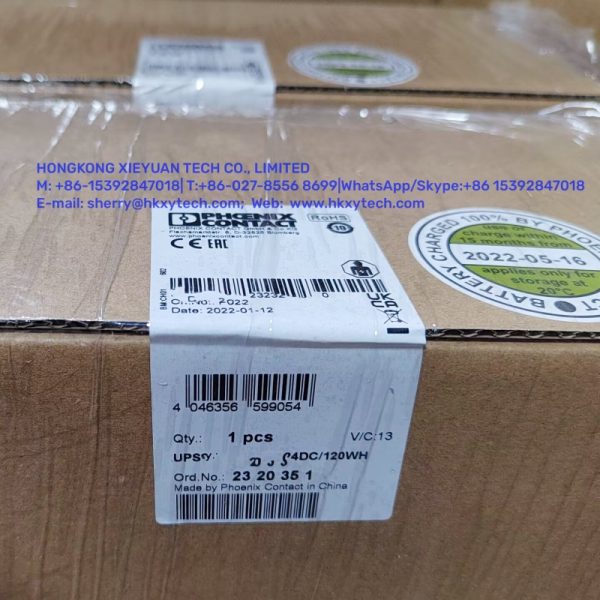

2320351 PHOENIX CONTACT UPS-BAT/LI-ION/24DC/120WH

For continuous monitoring and intelligent management, there is constant communication with the QUINT UPS. Thanks to automatic detection of the energy storage, and tool-free switching during operation, quick installation is possible. The QUINT UPS with IQ technology energy storage leaves the warehouse fully charged.

2320351

Technical Data

Input data

Input voltage	24 V DC
Buffer period	14 min. (20 A)

Output data

Nominal output voltage	24 V DC
Output current I_max	30 A
Output fuse	1x 30 A ATOF 32V (breaking capacity 1000 A)
Connection in parallel	3
Connection in parallel	3
Connection in series	No
Battery operation
Nominal output voltage	24 V DC
Nominal output current (I_N)	30 A

Energy storage

End-of-charge voltage	28.5 V DC (20 °C)
Charging current	10 A
Nominal capacity	120 Wh
Latest startup date (battery only)	24 Months (20 °C)
Battery technology	Lithium-Ion (LiFePO₄)
Memory medium	LI-ION, 120 Wh
Accumulator type	NEC ALM 12V7s HP
Number of cells	2
Size designation	Block
Battery pack	yes
Disposal	Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations.
IQ technology	Yes
Temperature sensor	yes
Suitable for fast charging	yes
